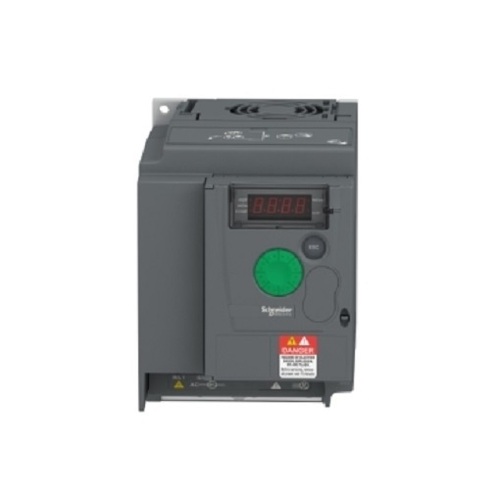

Altivar Atv310hu75n4e

Price 1 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Altivar Atv310hu75n4e Specification

Automation Grade
Automatic

Screen Size
Integrated LED Display

Processor Type
Microcontroller based

Drive Type
AC Drive

Weight
4.3 kg

Connectivity Type
Screw Terminal

IP Rating
IP20

Load Capacity
7.5 kW (10 HP)

Remote Control
Yes

Speed Range
0.5 to 400 Hz

Features
Short circuit, Overvoltage, Undervoltage, and Overheating protection, Auto-tuning, Easy commissioning

Cable Length
As per wiring requirement

Control Type
Variable Frequency Drive (VFD)

Application
Pumps, Fans, Conveyors, Handling, and Machine Tool applications

Sensor Type
No direct sensor (external feedback optional)

Frequency
50/60 Hz

Phase
Three Phase

Mounting Type
Panel Mount

Material
Metal Body with Electronic Components

Power
7.5 kW

Temperature
-10C to +50C (operating)

Product Type
Variable Frequency Drives

Voltage
380-460 Volt (v)

Color
Dark Grey

Warranty
1 Year

Digital Inputs/Outputs
7 Digital Inputs, 2 Relay Outputs

Altitude
1000 m without derating (up to 3000 m with derating)

Cooling Method
Fan cooled

Standards
IEC/EN 61800-5-1, IEC/EN 61800-3

Display Type
7-segment LED

Product Series
Altivar ATV310

Enclosure Type
Open Type

Motor Control
V/F and Sensorless Vector Control

Analog Inputs/Outputs
2 Analog Inputs, 1 Analog Output

Braking Unit
Integrated

Overload Capacity
150% for 60 seconds

Relative Humidity
5% to 95% (non-condensing)

Model Number
ATV310HU75N4E

Communication Protocol
Modbus RTU (RS485)

Altivar Atv310hu75n4e Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Telegraphic Transfer (T/T)

Delivery Time
3-4 Days

Main Export Market(s)
Asia

Main Domestic Market
Gujarat

About Altivar Atv310hu75n4e

Altivar Atv310hu75n4e

Optimized installation space & Optimized time and cost
Service cost savings
Easy to operate
Easy to maintain & Easy to integrate in automation system
55deg Celsius ambient temperature without derating

Versatile Motor Control for Industrial Applications

The Altivar ATV310HU75N4E is adept at controlling a wide range of industrial machinery, from pumps and fans to conveyors and machine tools. It combines variable frequency drive (VFD) technology with sensorless vector control for reliable and energy-efficient performance. Users benefit from its ease of use and flexibility, making it ideal for manufacturers, fabricators, and automation professionals across India.

Robust Safety and Protection Features

Safety is paramount in industrial settings. This drive offers comprehensive protection against short circuits, overvoltage, undervoltage, and overheating. Its robust construction (metal body, IP20-rated enclosure) ensures durability even in adverse conditions. The integrated braking unit enhances operational control, while its certifications to IEC/EN 61800 standards assure compliance and safety for every installation.

User-Friendly Interface and Remote Connectivity

Featuring a clear 7-segment LED display and auto-tuning functionality, the drive simplifies commissioning, monitoring, and diagnostics. It supports remote control and monitoring through Modbus RTU protocol (RS485), allowing for seamless integration into modern automation systems and easy parameter adjustments from a distance, which is particularly advantageous in complex installations.

FAQ's of Altivar Atv310hu75n4e:

Q: How do I install and commission the ATV310HU75N4E drive?

A: The ATV310HU75N4E is designed for simple panel mounting using screw terminals. Connect your three-phase power (380-460 V, 50/60 Hz), set input and output wiring, and configure settings on the 7-segment LED display. The auto-tuning function assists in optimizing performance for your specific motor.

Q: What applications is the ATV310HU75N4E best suited for?

A: This drive is ideal for industrial uses such as pumps, fans, conveyors, handling systems, and machine tooling. Its precise variable frequency control and overload protection make it suitable for continuous and demanding operations.

Q: When should I use integrated braking and what are its benefits?

A: The integrated braking unit is useful in applications requiring quick stops or speed changes, such as conveyors. It improves operational safety and responsiveness by dissipating excess energy during deceleration, reducing wear on mechanical parts.

Q: Where can the ATV310HU75N4E be installed?

A: The unit is designed for indoor panel mounting environments with a relative humidity of 5% to 95% (non-condensing). It operates effectively up to 1000 m altitude (without derating) and in temperatures from -10C to +50C, making it powerful and adaptable for varied industrial environments across India.

Q: What process protections does the drive offer?

A: It includes comprehensive protections against short circuits, overvoltage, undervoltage, and overheating. These active safety features help maintain continuous operation and protect both the drive and motor equipment from electrical faults.

Q: How does remote operation work with this drive?

A: The ATV310HU75N4E supports remote monitoring and control through a Modbus RTU network using the RS485 communication port. This allows operators to adjust settings, monitor performance, and receive alerts from a central control panel or PLC system.

Q: What are the main usage and operational benefits of this VFD?

A: Users gain precise speed control, enhanced energy efficiency, and reduced mechanical stress on motors. The drive's auto-tuning, easy commissioning, diagnostic LED display, and robust protections streamline setup, daily operation, and future maintenance, maximizing uptime and productivity.
